1SDA066325R1
Giá: Liên hệ
Mã sản phẩm: 1SDA066325R1
Share
SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
General Information
-
- Extended Product Type:
- SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
-
- Product ID:
- 1SDA066325R1
-
- EAN:
- 8015644692193
-
- Catalog Description:
- SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
-
- Long Description:

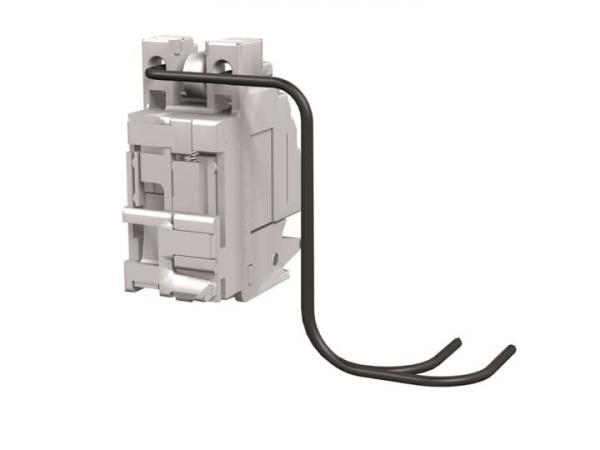

- SHUNT OPENING RELEASE WIRED 220-240V AC-220-250V DC FOR FIXED-PLUG-IN XT1..XT4
Categories
- Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Accessories for Tmax XT
Ordering
-
- E-Number (Sweden):
- 3182061
-
- EAN:
- 8015644692193
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 85362090
Dimensions
-
- Product Net Width:
- 110 mm
-
- Product Net Height:
- 60 mm
-
- Product Net Depth / Length:
- 140 mm
-
- Product Net Weight:
- 0,114 kg
Container Information
-
- Package Level 1 Units:
- 1 piece
-
- Package Level 1 Width:
- 110 mm
-
- Package Level 1 Height:
- 60 mm
-
- Package Level 1 Depth / Length:
- 140 mm
-
- Package Level 1 Gross Weight:
- 0,12 kg
-
- Package Level 1 EAN:
- 8015644692193
Additional Information
-
- Configuration Type:
- Loose or configurable
-
- Current Type:
- AC/DC
-
- Order Multiple:
- 1 piece
-
- Product Main Type:
- Accessories for Tmax XT
-
- Product Name:
- Accessory
-
- Product Type:
- ACC
-
- Rated Voltage (Ur):
-
220 ... 240 V AC
220 ... 250 V DC
-
- Standards:
- IEC 60947-2
-
- Suitable For:
- XT1, XT2, XT3, XT4
-
- Suitable for Product Class:
- SACE Tmax XT
Certificates and Declarations (Document Number)
-
- Data Sheet, Technical Information:
-
1SDC210100D0201
1SDC210033D0204
-
- Instructions and Manuals:
- 1SDH000719R0501
Classifications
-
- ETIM 6:
- EC002483 - Switch spool for power circuit breaker
-
- ETIM 7:
- EC002483 - Switch spool for power circuit breaker
-
- Object Classification Code:
- Q
-
- UNSPSC:
- 39120000
-
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
