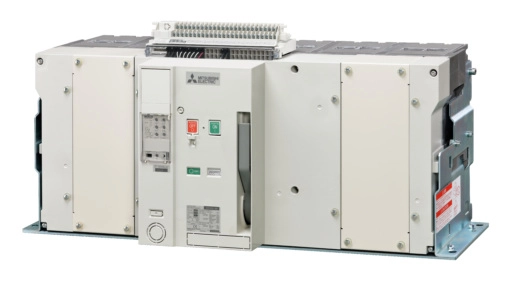

AE6300-SW 3P F 6300A
Giá: Liên hệ
Mã sản phẩm: AE6300-SW 3P F 6300A
Share
FA-ACB: Air Circuit Breaker
| Series | AE-SW SERIES |
|---|---|
| Type | FIXED TYPE |
| Current Range Ir (A) | 3150-6300 |
| Current Type | AC |
| Rated Voltage (V) | 690 |
| Number of Poles | 3 |
| Cycles with Rated Current | 1000 |
| Cycles without Rated Current | 10000 |
| Frame Size | 6300 |
| Breaking Capacity at 500V (kA) | 130 |
| No of Auxiliary Contacts NO | 5 |
| No of Auxiliary Contacts NC | 5 |
| Internal Power Supply (V) | 100-240 AC 100-125 DC |
Product Dimensions & Weight
| Width (mm) | 873 |
|---|---|
| Height (mm) | 414 |
| Depth (mm) | 290 |
| Weight (kg) | 160 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV,GL,LR,NK |
| UKCA | COMPLIANT |
