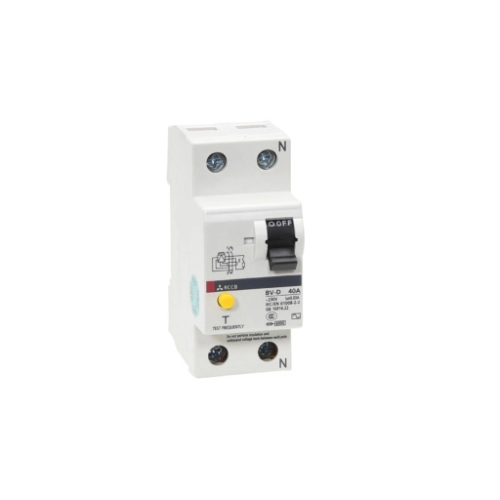

BV-D 2P 40A 30MA N
Giá: Liên hệ
Mã sản phẩm: BV-D 2P
Share
FA-MCB: Residual Current Circuit Breaker
| Series | WS-V SERIES - RCCB |
|---|---|
| Type | BV-D EARTH CIRCUIT BREAKER |
| Rated Voltage (V) | 230 |
| Current Type | AC |
| Number of Poles | 1+N |
| Breaking Capacity at 415V (kA) | 6 |
| Cycles with Rated Current | 8000 |
| Cycles without Rated Current | 8000 |
| Rated Current Sensibility (mA) | 30 |
| Pulsating Current Sensibility | TYPE AC |
| Rated Current (A) | 40 |
Product Dimensions & Weight
| Width (mm) | 36 |
|---|---|
| Height (mm) | 85 |
| Depth (mm) | 70 |
| Weight (kg) | 0,2 |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
